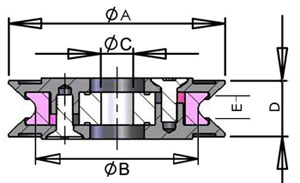

组合导线轮（过线轮）：应用于漆包线或丝线适量导向，其中部瓷圈由精密陶瓷制作，凹槽超精抛光达Ra0．2，瓷圈配高速轴承，两侧的挡板可防止绕线时漆包线跳出槽外，同时使绕线时的张力保持稳定一致，也有直接由全陶瓷与高速轴承组合的叫陶瓷瓷轮。适用于各类绕线机及纺织机械中的过线过丝部件。
1、主体为精密陶瓷
2、护套采用尼龙材料
3、水中使用可选用石墨代替轴承
|
Modle No |
A |
B |
C |
D |
E |
|
HCR001-B03 |
20 |
15 |
3 |
4.8 |
3 |
|
HCR002-B04 |
28.7 |
20 |
4 |
6.4 |
4 |
|
HCR003-B03 |
30.4 |
15 |
3 |
10 |
3 |
|
HCR004-B04 |
40 |
20 |
4 |
15 |
3 |
|
HCR045-B05 |
45 |
30 |
5 |
10 |
6 |
|
HCR045-B06 |
6 | ||||
|
HCR005-B05 |
54.5 |
30 |
5 |
10 |
6 |
|
HCR005-B06 |
6 | ||||
|
HCR005-B07 |
7 | ||||
|
HCR005-B08 |
8 | ||||
|
HCR006-B07 |
60 |
40 |
7 |
13 |
7 |
|
HCR006-B08 |
8 | ||||
|
HCR006-B10 |
10 | ||||
|
HCR006-B12 |
12 | ||||
|
HCR007-B05 |
60 |
30 |
5 |
18 |
6 |
|
HCR007-B06 |
6 | ||||
|
HCR007-B07 |
7 | ||||
|
HCR007-B08 |
8 | ||||
|
HCR008-B10 |
79.2 |
50 |
10 |
15 |
9 |
|
HCR009-B07 |
80.5 |
40 |
7 |
25 |
7 |
|
HCR009-B08 |
8 | ||||
|
HCR010-B10 |
99.3 |
50 |
10 |
29.5 |
9 |
