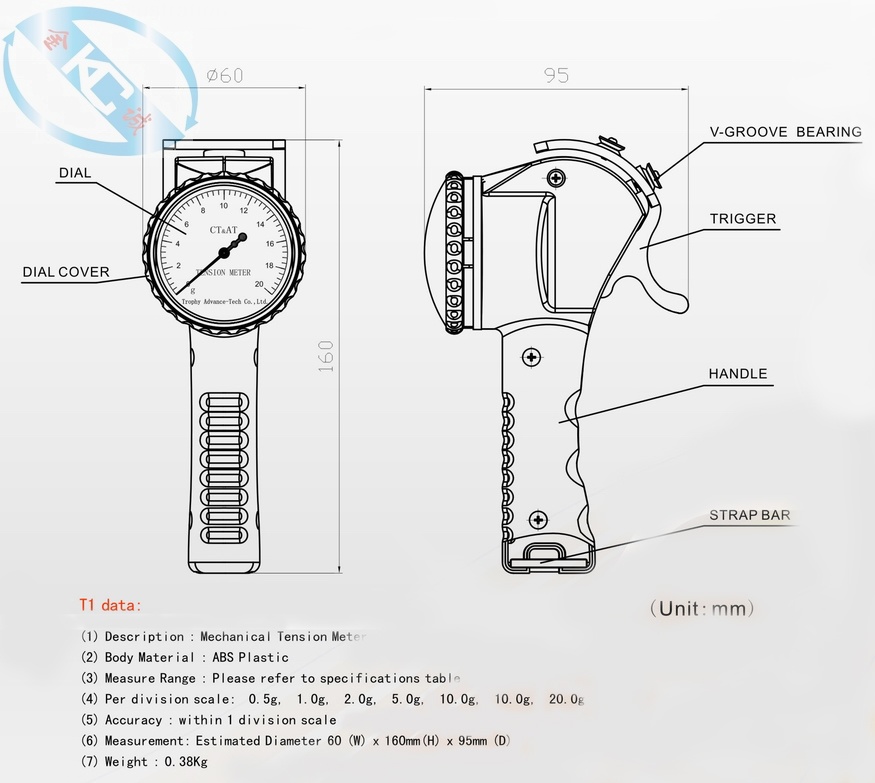

Mechanical Tension Meter T1 Series are for accurately measuring the running line tensions on all kinds of wires (cooper,metal,aluminum,plastic and etc).yarns and fibers.With precise jeweled(Ruby bushing) movement,Precision ball bearing mounted rollers and built-in damper,T1 tension meter completely eliminate the vibration and resistance caused by instrument itself,to provide reliable,accurate and steady tension reading as tension fluctuate.
|
Model |
Trigger Spec |
Test range |
Min Scale on Dial |
|
T1-01-020 |
01 |
0g～20g |
0.5 g |
|
T1-01-050 |
01 |
0g～50g |
1.0g |
|
T1-01-100 |
01 |
0g～100g |
2.0g |
|
T1-01-200 |
01 |
0g～200g |
5.0g |
|
T1-01-300 |
01 |
0g～300g |
10.0g |
|
T1-01-500 |
01 |
0g～500g |
10.0g |
|
T1-02-1000 |
02 |
0g～1KG |
20.0g |
